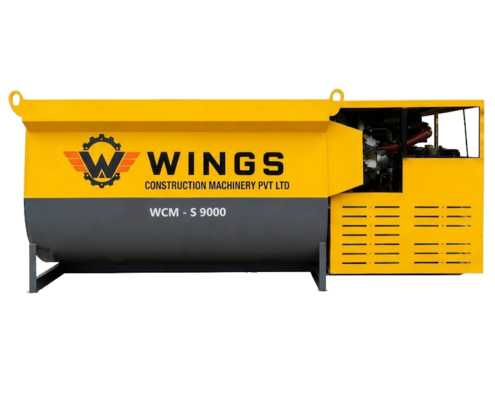

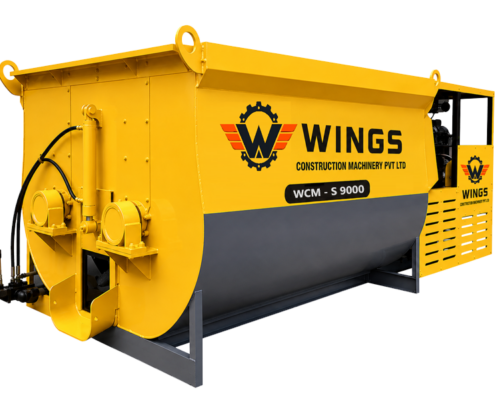

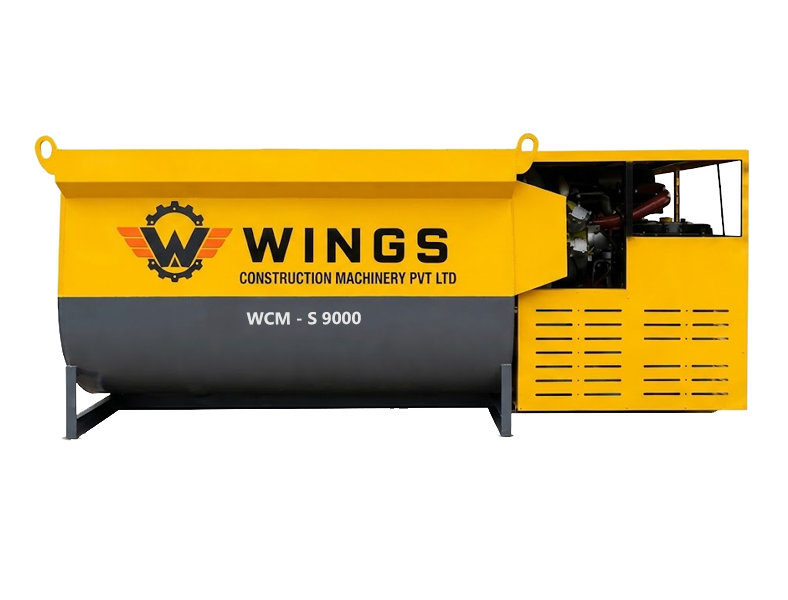

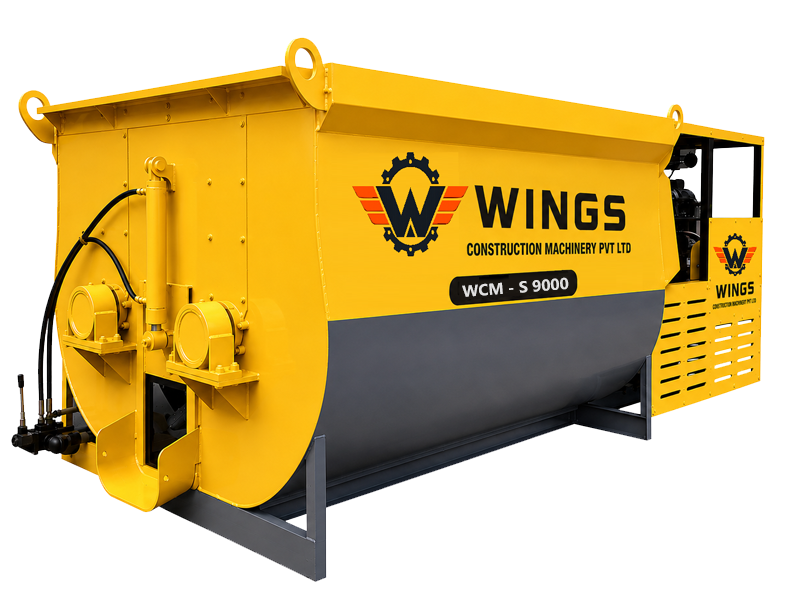

Stationary Horizontal Concrete Mixer
WCM-S9000
- Mixing Capacity – 9 m³
- Mixing System – Twin Shaft Mixer
- Number of Mixing Blades – 18 Shovel
- Mixing Tank Capacity – 9000L
- Mixing Tank Body Thickness – 8mm
- Mixing Tank Governor Thickness – 16mm
- Concrete Discharge Outlet – 01 rear discharge outlet opened by hydraulic cylinder Sets
- Chassis – U160-180

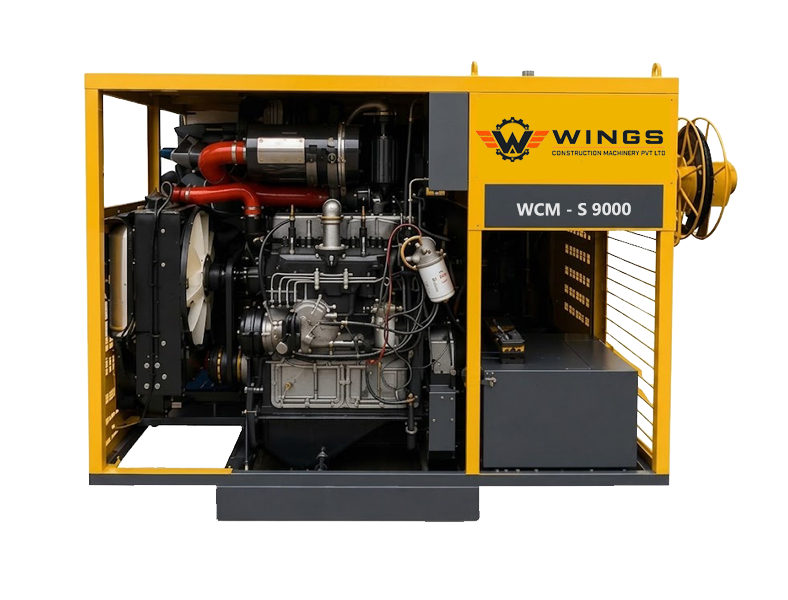

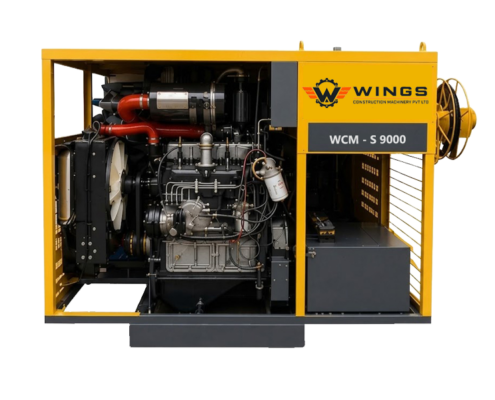

- 4-Cylinder Diesel Engine Power – 95 KW / 130 HP
- Starter System – 24V
- Accessories – Grease Gun
- Overall Dimensions (L*H*B) – 4500 x 2100 x 1650mm
- Mixing Tank Size (L*H*B) – 3000 x 2000 x 1600mm
- Machine Weight – ≤5000kg
